The Restoration Hangar at the Planes of Fame Air Museum in Chino, CA contains the aircraft restoration projects underway at the Museum with the exception of the B-17 and DC-3/C-47.
A large number of the 268 Museum volunteers can be found working on various projects every Thursday and Saturday and the hangar is open to the public for viewing. Some projects have been underway for years, but a number are approaching completion and will soon become part of the Museum’s flying inventory.
A few, such as the P-59 and the Aichi D3A2, will be the only flying examples in existence and all are noteworthy in their own way. A summary of the restoration projects and their progress reports follow below.
These restoration projects are funded by donations to Planes of Fame Air Museum. Look for the link below to give support to your favorite airplane!
- N. American L-17A Navion
- Boeing B-17G
- Bell P-59A Airacomet
- N. American O-47
- Aichi D3A2
- Grumman OV-1 Mohawk
North American L-17A Navion
Over the year 2013, the restoration progress on the North American L-17A Navion will be a short story. Since 2009, the hydraulic system was installed and the electrical wiring was replaced with the correct gauge wiring and is now being completed. The landing gear were tested and they cycled correctly. Structure-wise, we have a complete aircraft. The instrument panel was completed with an updated series of circuit breakers for the planned electronics and communication systems.
Yet to be done are the following requirements: the headlining for the canopy has to be sewn and glued in position. The flight instrument panel is still in Fighter Rebuilders being completed. Extensive systems tests of the hydraulic and electrical systems must still be performed when the engine can be run after the acquisition of an airworthy propeller. We are awaiting the verdict on the propeller, which is in the prop shop.
The team now consists of Roger Long, Phil Claypool, Jim Stuhler, and Quentin Swager. (Dec-1-2013)
Boeing B-17G (Manufactured by Douglas)
In late 2008, the Museum assembled a volunteer restoration team to work with Museum staff under the direction of John Maloney to accelerate the process of bringing B-17G, #44-83684, “Piccadilly Lilly II” back to flight condition. By 2013, significant progress was made with respect to the short term goals of 1) enhancing the visitor experience and 2) systematically repairing and mitigating on-going degradation of structural components. Efforts have focused on the restoration of various crew stations so that visitors can more easily put themselves in the shoes of a young crew member at 25,000 feet on a bombing run over enemy territory in late WWII.
The ball turret has been restored and a machine gun (with new ammo box) mounted in one of the waist gunner positions. New gun barrels were fabricated and added to the tail and a fully refurbished, modified top turret has been installed. Both the ball turret and top turret can be manually operated. Motors for the chin turret have been restored to allow the chin turret to be electrically operated when it is reinstalled.
Crew station equipment, particularly in the nose, cockpit, and tail gunner positions are currently being restored, replaced with new surplus items, or if necessary, fabricated in preparation for reinstallation when structural repairs are completed in those positions. The tail cone has been removed and structural repairs in it are nearing completion after the tedious task of stripping all old paint was completed. The same is true of the radio compartment where paint was stripped, structural repairs were completed, the compartment was repainted and most equipment has been refurbished and reinstalled. A new radio stack was obtained and new radio mounting brackets fabricated from scratch.
All equipment from the nose (including the chin turret) and cockpit were removed, cataloged, and stored, with each piece being cleaned or refurbished prior to reinstallation in 1st quarter of 2014. The cockpit and nose have been stripped and repainted and structural repairs, including the re-fabrication of some structural components, are nearing completion. New windows have been installed and the nose plexiglass was removed, refurbished and reinstalled.
New wood flooring was made for the tail gunner’s compartment and the waist. Fabrication of new flooring for the cockpit is nearing completion and fabrication of new flooring for the nose is in progress. Other wooden components have also been rebuilt or refabricated, including the floor in the waist and radio compartment, an electrical junction box in the bomb bay, two ammo boxes (the first two of several), the tail gunner seat, the radio operator’s desk (using mostly original wooden components), and the navigator’s desk, and the instrument panel frame, with the restoration and re-fabrication of interior wooden doors still in progress. Radio mounting brackets on the exterior of the aircraft, all props have been stripped and repainted plus the engine cylinders, tail wheel assembly and main landing gear have been cleaned and repainted. Restoration of peripheral equipment such as bombs and bomb carts has been completed. Landing light housings have been refabricated from scratch. Numerous repairs have been made to the horizontal and vertical stabilizers and related fairings. The vertical stabilizer has been rebuilt and remounted and bomb group markings added.
New signage (part of an Eagle Scout project) directs visitor attention to, and provides information about, various features of the aircraft.
Our dedicated Volunteer Restoration Team includes: Bill Amend, Stevan Hart, Jack Hopkins, Sung Su Kim, Gilbert Orosco, Keith Pappas, John Thomas. Technical direction is provided by John Maloney. Docents Frank Teichrow, Sharon Trerotola, Dick Roche, Paul Rosnau, and Steve Wallace shepherd visitors around and through the aircraft. All work is under the watchful eye of our B-17 crew veterans Wilbur Richardson and Carl Rossman who ensure what we do is historically accurate and that visitors receive a quality experience. (Dec-2-2013)
Bell P-59A Airacomet

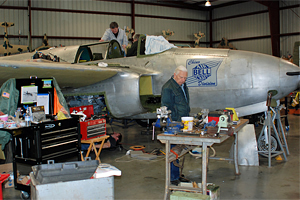

The Bell P-59A Aeracomet was America’s first jet powered aircraft. Designed and built during WWII, the aircraft never saw combat. However, it was the precursor for all other jet aircraft that followed and was put in service as a trainer for subsequent jet aircraft developed. The XP-59A first flew on October 1, 1942 at Edwards Air Force Base (then called Muroc Dry Lake). The XP-59A was fitted with a dummy propeller when it was not flying as a security precaution. Only six of the 66 originally built survive. When the restoration of the example at Planes of Fame Air Museum is complete, it will be the only P-59 flying anywhere in the world. The P-59 restoration has been underway for 22 years by a group of dedicated museum volunteers. With your help, 2013 will be the year it is finished!
The P-59 restoration is nearing completion after many years of effort. Major items that have been completed and installed to date are; wing spar caps, fuel bladders, electrical wiring, fire warning/extinguishing systems, canopy and windscreen replacement, control surfaces overhaul, and engine installations. Items awaiting completion are: cockpit and instrument panel overahaul, control surface rigging, and engine runs.
Volunteers assisting are John Benjamin, Fran Pieri, Guy Hill, Chris Hill, Bob Velker, Greg Pascal, Bill Buchanan, John Zing, Ron Hackworth, Keith Parker, Bob Poteete, Jose Macasaquit, John Maloney, Steve Hinton, George Higgins, Bud Fine, and Dick Horst.
Planes of Fame has been offered an amazing opportunity to get the P-59 in the air. An anonymous donor has put up $25,000 as a matching grant to raise the $50,000 needed to finish the P-59. Be a part of this historical project, donate now! (Dec 12, 2013)
"Returning soon to a sky near you!"
Me-109 (Hispano HA 1112 “Buchon”)

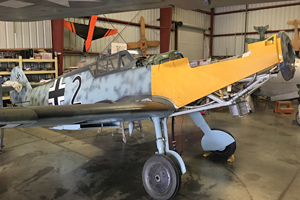

Work started on this aircraft a little over three years ago. The original charge was to just fix the wing, propeller and other damage caused when the airplane ground looped due to brake failure some ten years ago. We have suffered from mission creep and are now into a full blown restoration. As part of the restoration, we were able to obtain parts lists, maintenance information, certain assembly drawings, paint scheme details. To date, our work has included the complete stripping of aircraft paint. The right wing root and right and left wing tips have been repaired and the windshield, center canopy, and rear Plexiglas canopy have been removed, disassembled, and painted.
The damaged landing gear and gear actuator have been repaired and the aircraft is back on its gear. Radiators and shrouds have been removed and repaired plus all control surfaces were inspected and recovered. Lots of metal work has been done on the gear doors, wheel wells, right wing internals, and flaps.
To finish up and get the 109 flying, we need to get the wings back on, install the engine and rebuild the engine carburetor, and install brakes. Correct wheels and tires need to be acquired and the hydraulics/wiring repaired and reinstalled. The fuel tank needs to be finished and a new “liquidometer” installed along with the cockpit and canopy. Control surfaces need to be reinstalled and repairs to the fiberglass engine cowling must be finished. Finally, a new propeller needs to be located and the aircraft painted, stenciled, and detailed.
One thing that has made this restoration difficult is the mix of US and metric fasteners. Also, various repairs had been done prior, not always correctly, as this airplane has been ground looped multiple times.
The volunteers in the ME Bf-109 team are George Orff, Bert Bruckman, George Higgins, Dick Horst, Mike Fuller, Bobby, and of course thanks to John Maloney for his insight and help.
North American O-47
The North American O-47 is a restoration project that has been underway for a long time. The O-47 was moved to the Restoration Hangar in 2008 and major attention has been given to it in 2009. Extensive corrosion damage to the main lower fuselage formers has been addressed by the volunteer team, John Maloney, and John Kagihara. The lower fuselage is also being re-skinned. The landing gear has been overhauled and major work on the three position cockpit completed. Currently, the canopy is being overhauled and reconstructed when necessary. When the fuselage is completed, the interior will be painted and reinstallation of parts can begin. Work on various components in the engine compartment has begun and numerous re-fabrication projects identified. All-in-all, major progress has been made in the O-47 restoration and a completed fuselage with tail surfaces is in sight.
Volunteers in the O-47 team are John Benjamin, Dave White, Jack Felix, Lou Cook, Larry Glover, and Robert Wilhelm McCain.
Aichi D3A2 “Val”
2009 saw progress in the long term restoration of the Japanese Aichi D3A2 “Val” dive bomber. Sections 3, 4, and 5 of the cockpit canopy were completed and a new bulkhead for the tail section was completed. New attachment fittings for the rudder and vertical stabilizer were also machined and installed plus many ribs were redone.
In late summer (Aug-Oct), Alex Gonzales was joined by Shigeru (Sam) Hayashi. Sam lives in Japan and traveled to Planes of Fame Air Museum to provide invaluable project assistance. Sam translated various Japanese documents/manuals looking for needed dimensions in the tail area. He also converted metric dimensions to “U.S.” dimensions for easier use. The new information allowed Sam to fabricate a new trim tab mechanism for the rudder and correct the structure of the horizontal stabilizer. We hope that Sam will be able to rejoin us in the near future and also thank his very understanding wife who allowed his extended absence from home.
Grumman OV-1 Mohawk Project - A Salute to Viet Nam Veterans

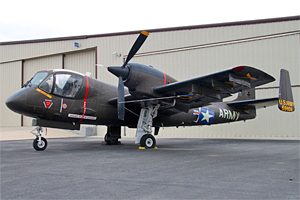

Thanks to the “heroic” efforts of Jim Dale, Dick Cole many other Planes of Fame Air Museum volunteers, our OV-1A Mohawk flew into Chino in November of 2006 having been rescued from a small airport in Louisiana where it sat through multiple hurricanes. After its military service it was used in aircraft icing research and made its way through several different owners. This particular OV-1 is the second production aircraft built and the oldest flyable Mohawk in existence. We are very close to getting the Mohawk back into the air where she belongs. Our goal is to fly the Mohawk at air shows as our SALUTE TO VIET NAM VETERANS. As you can imagine the Mohawk needs some work and financial support. If you are able to give, it would be greatly appreciated.
If you have questions or would like to tour the Mohawk, please e-mail Planes of Fame Air Museum volunteer and project coordinator, Scott Turner.
Thank you for your interest and support, Team Mohawk (Dec 1, 2013)
